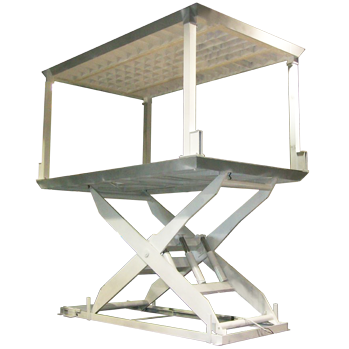

PLS-10 subterranean parking lift available by special order only.

The PLS-10 allows vehicles to be parked in secure underground parking locations while allowing a second vehicle to be parked above. The rugged lift structure, hydraulic and power components are completely concealed below ground so there is no indication that a lift or additional vehicle is safely stored below.

The PLS-10 parking lift is ideal for car enthusiasts whose passion for cars exceeds their space to store them. The PLS-10 makes it possible to use a garage with a lower ceiling height and utilizes a basement area below the garage or a pit constructed in the garage floor. If you have adequate ceiling clearance, it’s possible to retrieve the lower vehicle without having to remove the upper vehicle. The PL-18000 can accommodate both cars and SUVs and may be configured as a stand-alone lift or combined into rows of multiple units. When installed in rows of multiple units, the lifts share columns dramatically increasing space efficiency. The rugged built design utilizes a dependable hydraulic and cable-based lifting system for ultimate efficiency and safe operation.

• Double your space by parking two vehicles in the footprint of one parking stall
• 10,000 pound lifting capacity / 5,000 pounds per deck
• Unobtrusive and secure - the lift and lower vehicle are completely concealed
• Fail safe locking system
• Aesthetically pleasing - canopy surface can be tiled to match surroundings
• Multiple units can be installed side-by-side for use in condos, offices, etc.
• Superstructure features durable powder-coat finish
• Ideal for low-ceiling applications - use as verticle tandem parking to save space
• Safe, easy to operate
• Reliable electric-hydraulic power system
• "Up/Down" operator push button station
• Solenoid operated lowering
• Pilot-operated check valve and "velocity fuses" on each cylinder in the event of catastrophic hose failure
• Tapered toe guard protection around deck perimeter
• Hydrauling bypass protection in the hydraulic circuit to prevent the system from exceeding the 3,000 PSI max lifting capacity
• Maintenance configuration provides support in a raised position when engaged for safe inspection, maintenance and repair
• Emergency stop button
• 5 HP 230V 1 phase power unit / optional voltage requirements available



---

*Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2006 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
